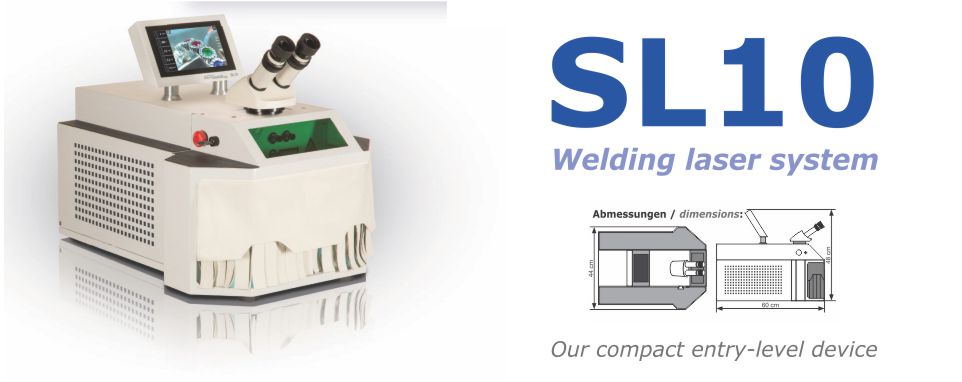

SL10

Compact, and inexpensive

The SL10 is an easy-to-use laser welding system that provides barrier-free access to the working chamber thanks to the large opening at the front. As a desktop device with a small footprint, the SL10 can be easily set up and is ready for use in no time even in small rooms with pre-assembled furnishings.

With a 5-litre water-cooling system, the SL10 is also suitable for continuous operation. The compact SL10 comes standardly equipped with an integrated camera, 60W power output and a pulse frequency of up to 20Hz. The laser parameters can be conveniently adapted to the respective welding task via the large touch display or can be retrieved quite simply as a pre-defined welding program, The compact SL10 is therefore ideally suited for all laser welding task in a studio or a small workshop.

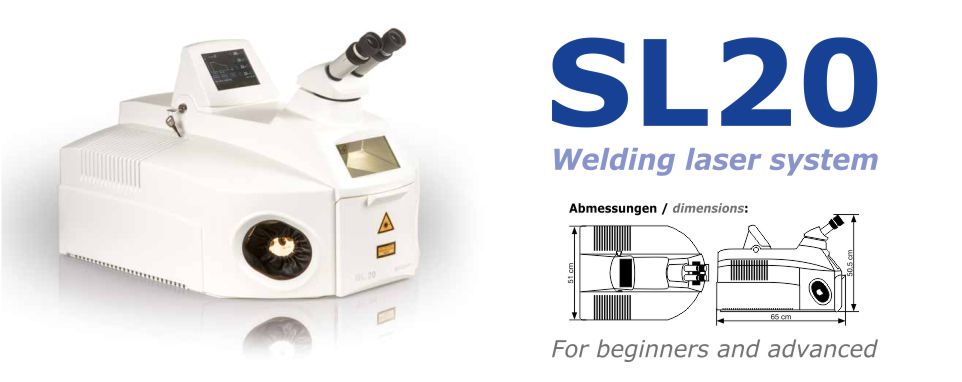

SL20

Compact, powerful and inexpensive

Developed for small workshops the laser-system SL 20 is characterized by a tremendous compact design.

The device is designed for small rooms with already pre-assembled furniture. The installation process is easy and quick. With the SL20 all laser welding tasks of a small workshop can easily be done. With 5 litres of water cooling the SL 20 is prepared for continuous operation. An efficient welding fumes extraction with fine dust particle filter is integrated as well. The high – quality stereo microscope Leica magnifies 15 times for optimal observation of the welding process.
Despite its compact design, the SL20 can achieve remarkable performance data.

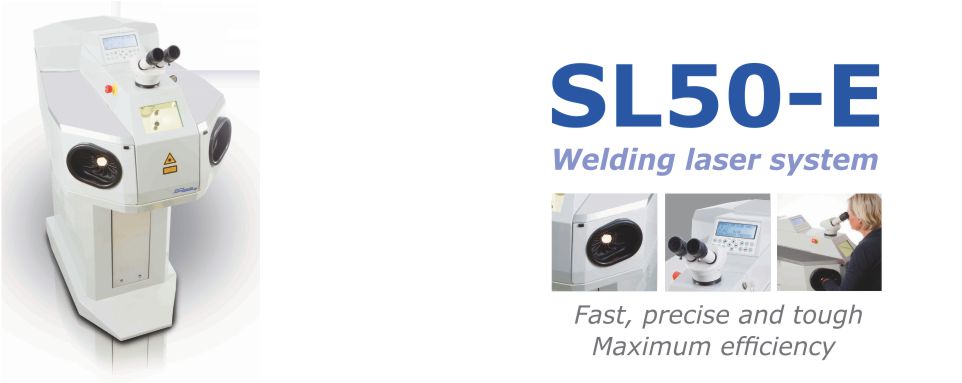

SL 50

Maximum Laser Performance

The SL 50 is based on the successful ALS 35 S model. It is one of the fastest handcraft laser workstations available on the market.

The device is especially suitable for series production due to its max. averaged performance of 120 Watt and a pulse frequency of 25 cycles per second. Processing time is reduced to a minimum, especially when welding seams. The optional mode aperture enables the beam diameter to be reduced to a mere 0.05 mm. This is of especially great benefit for very delicate workpieces. The casing is a welded high-grade steel construction. A working chamber with removable bottom provides additional flexibility in the handling of large workpieces.

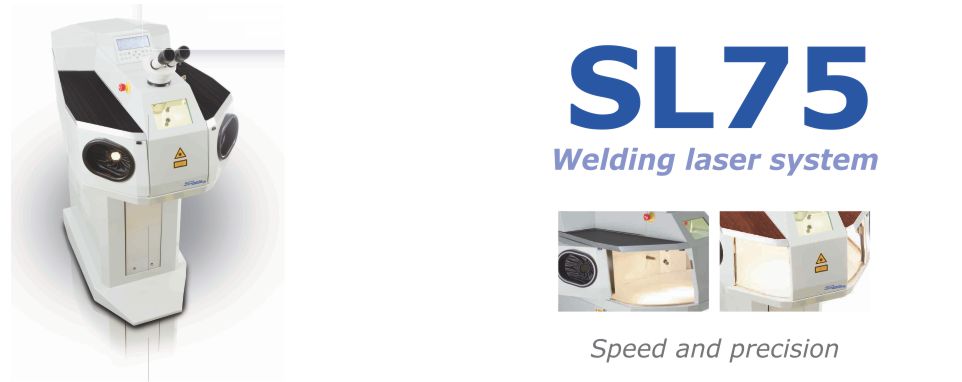

SL75

Maximum Laser Power through Double Flash lamp System

The SL75 Tornado laser system is designed for multi-shift operations and mass production applications.

Its double flash lamp system offers the highest peak pulse power up to 12 KW. The SL75 is perfect to weld materials, which demands high melting energy like silver, copper and pure gold. The averaged performance of 75 Watt at 15 cycles per second ensures a rapid workflow during production. Two internal heat exchangers provide enough cooling for this enormous power. Easy operating by using a shift regulator allows even unexercised users to handle the SL75 in a minimum of practice. The optional mode aperture enables the beam diameter to be reduced to a mere 0.05 mm. This is of especially great benefit for very delicate workpieces. The casing is a welded high-grade steel construction. A working chamber with removable bottom provides additional flexibility in the handling of large workpieces.

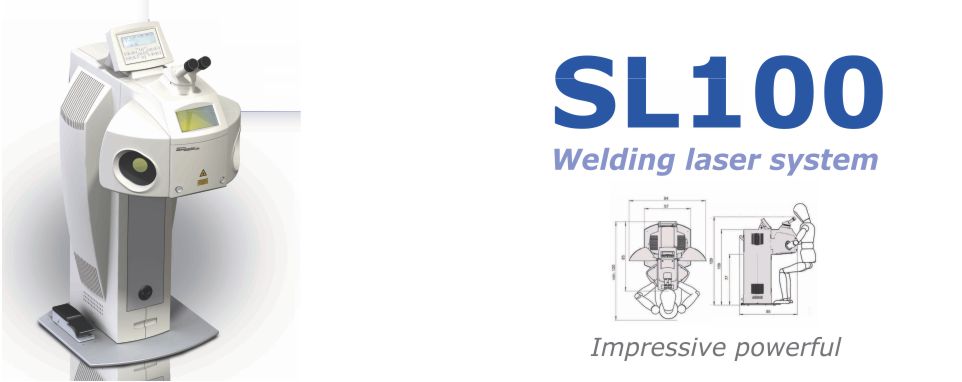

SL 100

Sensational Laser Performance

The new SL 100 in a slim design and new housing is one of the fastest laser hand-workplaces on the market.

The maximum averaged power rating of 100 Watt and a pulse repetition frequency of 25 shots per second make this unit particularly suitable for mass production. For welding seams, machining times are reduced to a minimum. Here the high beam quality makes for an optimum work result. The optional mode aperture enables the beam diameter to be reduced to a mere 0.05mm. This is of especially great benefit for very delicate workpieces. A large dimensioned work chamber decisively simplifies handling larger workpieces. Simple operation with joysticks enables even untrained users to learn to deal with this laser system very quickly. An ergonomic sitting position makes for a relaxed work posture and rounds off the profile. The new SL 100 is thus an all-rounder that proves convincing by its stupendous performance in repair and production operations.

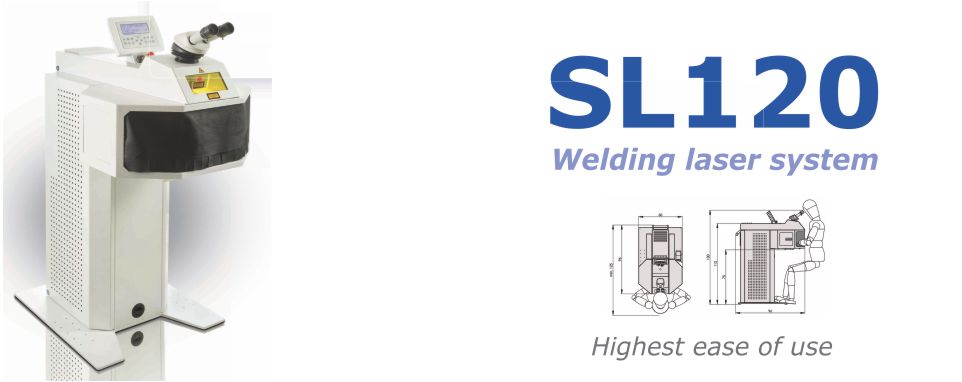

SL120

Highest ease of use

The new, highly convenient SL120 broadens our hand welding portfolio. You can process long, bulky and even large-size workpieces quickly and flexibly. Thanks to the generous available space the laser is also ideal for industrial production, as several processing steps can be carried out in the working chamber. The working chamber can be loaded via various laser-safe openings at the front, a large opening provides easy access to the spacious welding chamber. Side slots allow for the positioning and safe welding of longer components in the machining area. For bulky objects, the side flaps can be removed for even more flexibility, the leather laser safety curtain provides laser protection so that the laser system can be set up in any working environment. the flexible laser system can also be equipped with a fine welding option or with a rotary axis. The SL120 has a power output of 120W so that with its 50Hz pulse rate this model can also be used for laser polishing.
